AOQi Pharmaceutical Leaflet outsert System Leaflet Folding Machine With Camera Inspection System
The 480/600TS pharmaceutical outsert system folding machine is a pile feeder machine for 480 or 600mm wide and 1000 mm long,specially for the difficult and complicated sheet folding.The machine is equipped with a double sheet detection,nois hood,online paper ejection ect..
Features
1. Adopt belt driving to reduce noise.
2. Sheet infeed and sheet alignment with suction wheel and ball rail .
3. Belt driving , slient and stable.
4. Equipped with sound insulation and delivery table.
5. Support perforating , scoring and cutting
6. Electrical system controlled by PLC Schneider brand .
7. Equipped with ultrasonic double sheet detection.
Station I : 600TS Paper Folder --- 600mm width format with 6-18 plates
480TS Paper Folder --- 480mm width format with 6- 20 plates
Station II: is to handle the thick and small-size leaflets with 4 or 6 plates.
| Model | 360T/480T | 530TS | 480TS/600TS |
| Min.sheet Size | 50*105mm | 70*120mm | 100*160mm |
| Max.sheet Size | 360*(750/1000)mm 480*(750/1000)mm | 530*1000mm | |
| Paper Thickness | 40-250g | 40-300g | 40-300g |
| Folding Roller Fastest Speed | 200/min | 220/min | 220/min |
| Folding Knife Max.frequency | 500stroke/min | 400stroke/min | 400stroke/min |
| Input Power | 380v | 380v | 380v |
| Power Consumption | 2.0-3.75kw | 3.1-3.75kw | 3.9-4.75kw |
| Net Weight | 500-1500kg | 800-1500kg | 800-1500kg |
Press unit
Max. infeed width : 160mm
Product Max. thickness : 10mm
Max. speed : 60m/min
voltage: 380V,075KW
Dimension(L*W*H) : 600*560*(1150-1250)mm
Weight : 185KG
Parallel knife
Max. infeed size:140*160(L*W)
Min. infeed size : 70*25(L*W)
Max. thickness : 12mm
Speed: 90m/min
Hot melt gluing machine
Max. infeed size:250mm
Min. infeed size : 20mm
Max. speed : 120m/min
Voltage:220V
Machine weight:76.5kg
Machine dimensions:1000*370*1250mm
Vertical Stacker
Max.delivery width:200mm
Min.delivery width:25mm
Min.finished product size:20*20mm
Max.delivery height:150mm
Min.delivery height:20mm
Power:220V,0.2KW
Product Tags:
|
|

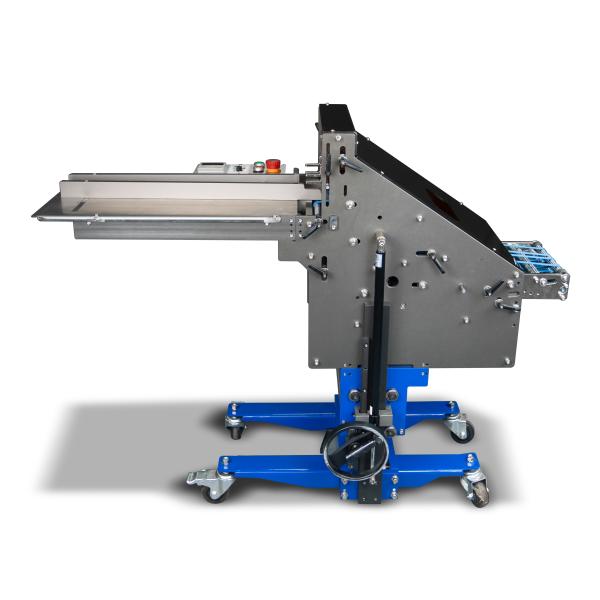

Belt Driving Pharmaceutical Leaflet Folding Machine Images
|
